StepNpull Hands Free Door Opener Copper Finish

$29.95

Product Type : Touchless Restroom

Vendor : Touchless Restroom

SKU : Step-N-Pull-Copper

StepNpull Hands Free Door Opener Copper Finish Each StepNpull hands free door opener comes complete with mounting screws, door sign and installation instructions. Below are the StepNpull technical specifications:Width: 5"Height: 1.5"Depth: 3"Weight with mounting hardware: 1/2 poundMaterial: T6 aluminum with 70% recycled aluminumFinish: Powder coatColor: Silver (chrome), Copper Vein, Gold VeinOther:...

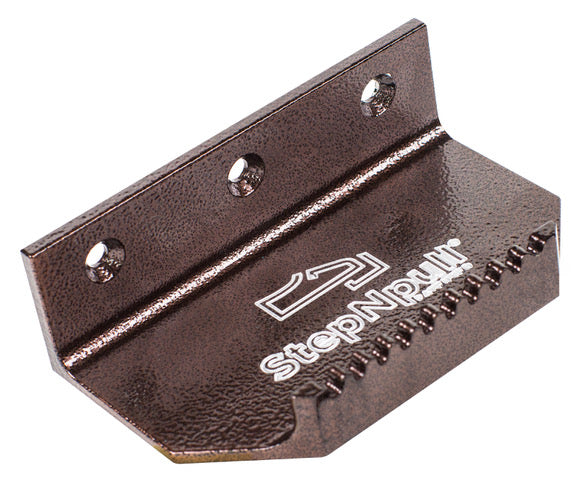

StepNpull Hands Free Door Opener Copper Finish


Each StepNpull hands free door opener comes complete with mounting screws, door sign and installation instructions.

Below are the StepNpull technical specifications:
Width: 5"
Height: 1.5"
Depth: 3"
Weight with mounting hardware: 1/2 pound
Material: T6 aluminum with 70% recycled aluminum
Finish: Powder coat
Color: Silver (chrome), Copper Vein, Gold Vein
Other: Rugged bumpers on the face of the StepNpull for wall contact where applicable. Informational door stickers (2 per unit) are included.
Mounting: StepNpull mounts to the bottom corner of a commercial latch less metal or wood door via 3 mounting screws. The mounting hardware includes 3 #12 combo (metal or wood) screws and 1 sexed (barrel) bolt which goes completely thru the door. StepNpull can be mounted on a wooden door using just the screws but we highly recommend using the sexed bolt in the center hole instead of a screw. On metal doors the sexed bolt must be used in the center hole.

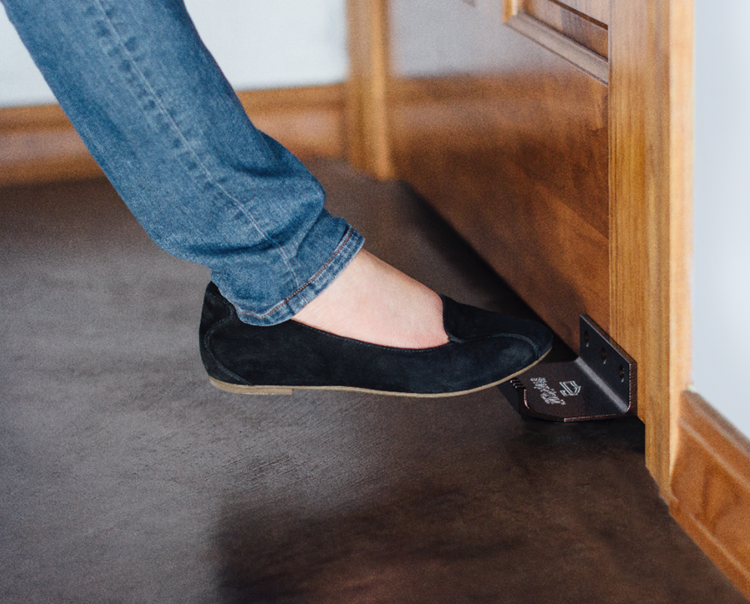

How to Mount the Step N Pull Hands Free Door Opener



StepNpull should be mounted approximately ⅛" from the bottom and and outer edge of the door.

  1. Mark the holes with a pencil while holding the StepNpull® against the door at a level mounting position.

  2. Use a 5/16” bit to drill the center hole.

  3. Use the sexted bolt for the middle hole.

  4. Level the StepNpull

  5. Use the 1 ¼” screws for the outside holes

  6. Tighten sexted bolt.
