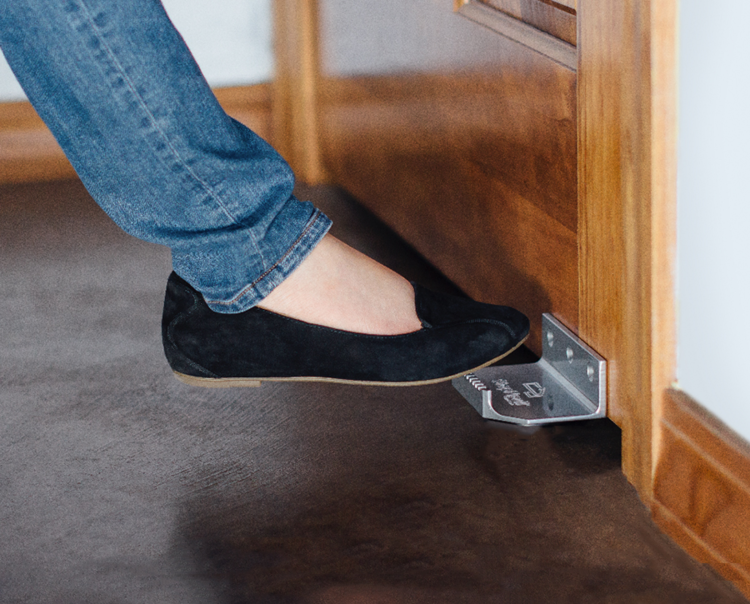

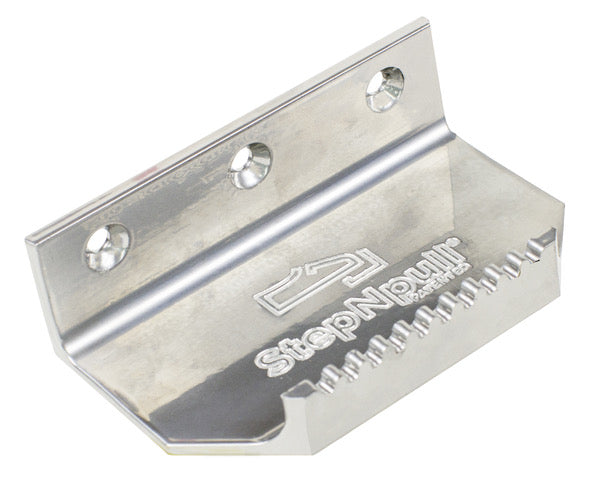

StepNpull Hands Free Door Opener Silver Finish
Product Type : StepNpull Hands Free Door Opener
Vendor : HDM Supply
SKU : HDM-SNP
Step N pull Hands Free Door Opener Silver Finish
Each StepNpull hands free door opener comes complete with mounting screws, door sign and installation instructions.
Below are the StepNpull technical specifications:
Weight with mounting hardware: 1/2 pound
Material: T6 aluminum with 70% recycled aluminum
Finish: Powder coat
Color: Silver (chrome), Copper Vein, Gold Vein
Other: Rugged bumpers on the face of the StepNpull for wall contact where applicable. Informational door stickers (2 per unit) are included.
Mounting: StepNpull mounts to the bottom corner of a commercial latch less metal or wood door via 3 mounting screws. The mounting hardware includes 3 #12 combo (metal or wood) screws and 1 sexed (barrel) bolt which goes completely thru the door. StepNpull can be mounted on a wooden door using just the screws but we highly recommend using the sexed bolt in the center hole instead of a screw. On metal doors the sexed bolt must be used in the center hole.
How to Mount the Step N Pull Hands Free Door Opener
StepNpull should be mounted approximately ⅛" from the bottom and and outer edge of the door.
Mark the holes with a pencil while holding the StepNpull® against the door at a level mounting position.
Use a 5/16” bit to drill the center hole.
Use the sexted bolt for the middle hole.
Level the StepNpull
Use the 1 ¼” screws for the outside holes
Tighten sexted bolt.
