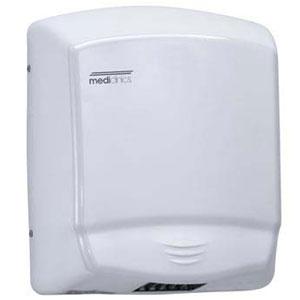

Optima Medium Range Auto Series Hand Dryers

PRODUCT OVERVIEW

The Optima range incorporates a stainless steel casing with a modern design. It is available in three different finishes and has an automatic activation feature. The best choice for premises with an average number of users.

• Warm air hand dryer
• Sensor operated by hand approximation
• Suitable for high traffic facilities
• Compact appliance.
• Highest durability in its class.
• 10 Year Warranty
• It normally goes along with a soap dispenser

CERTIFICATES AND QUALIFICATIONS

UL comply with UL499 norm.

COMPONENTS AND MATERIALS

• Metal sheet one-piece cover with white epoxy enamelled 5/64" (1,9 mm) thick.
• Cover fixed to the base by means of 4 Allen head screws.
• Engineering thermoplastic Cycolac base and fan scroll, with 4 x 5/16"(8 mm) holes for wall mounting
• Motor, induction, 3,300 rpm, maintenance-free and high durability, incorporates a safety thermostat.
• PP UL94-V0 single inlet fan wheel.
• Waved wire NiCr 40 heating element that incorporates a safety thermostat
• Two distances (2"-8") IR electronic detection sensor.
• Zamak air outlet grill.

OPERATIONS

UL comply with UL499 norm.

SPECIFICATIONS

Surface mounted vandal resistant hand dryer shall be fabricated with one-piece 5/64" thick metal sheet cover, white epoxy enamelled. The back base shall be fire resistant plastic Cycolac and with 4 holes for wall mounting.

The dryer shall be activated through an infrared electronic sensor and shall automatically turn off when hands are removed. The induction motor shall be 1/5 hp, 3,300 r.p.m. and incorporate a temperature limiter which switch off at 266 °F (130°C) . The waved wire NiCr 40 heating element should incorporate a thermal limiter, which will switch off by a temperature of 176 °F (80°C.).

The PP UL94-V0 fan wheel should have a single inlet and the fan scroll shall be made of a fire resistant plastic Cycolac. Dryer shall deliver 194 CFM of air at 125.6 °F (52 °C) and 4,181 LFM velocity during user controlled drying cycle. The dryer shall have a total power of 1,640 Watts with a consumption of 13.6A. Noise level should be 60 dB. Overall dimensions shall be 10-1/16"W x 11-7/8"H x 5-1/2"D. Unit shall be UL listed, and or VDE approved and CE marked.

TECHNICAL SPECIFICS

255

• Metal sheet one-piece cover with white epoxy enamelled 5/64" (1,9 mm) thick.
• Cover fixed to the base by means of 4 Allen head screws.
• Engineering thermoplastic Cycolac base and fan scroll, with 4 x 5/16"(8 mm) holes for wall mounting
• Motor, induction, 3,300 rpm, maintenance-free and high durability, incorporates a safety thermostat.
• PP UL94-V0 single inlet fan wheel.
• Waved wire NiCr 40 heating element that incorporates a safety thermostat
• Two distances (2"-8") IR electronic detection sensor.
• Zamak air outlet grill.
