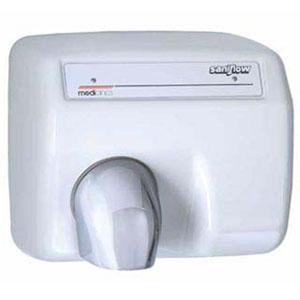

Saniflow Heavy Duty Cast Iron Auto Series Hand Dryers

Name: Saniflow Heavy Duty Cast Iron Auto Series Hand Dryers
Brand: Hand Dryers
SKU: HDM-SF-E85A
Price: 360.0 USD
Availability: InStock

$360.00

Product Type : Hand Dryers

Vendor : Hand Dryers

SKU : HDM-SF-E85A

PRODUCT OVERVIEWThe Long-lasting compact units with anti-vandalism features, minimum consumption and maintenance and free from vibrations and noise. This product is available with automatic infrared activation or manual activation and the casing comes in different materials and finishes. Warm air hand dryerSensor operatedVandal-proofSuitable for very high traffic facilities10 Year WarrantyIt...

Product Details
Customer Review

PRODUCT OVERVIEW

The Long-lasting compact units with anti-vandalism features, minimum consumption and maintenance and free from vibrations and noise. This product is available with automatic infrared activation or manual activation and the casing comes in different materials and finishes.

Warm air hand dryer

Sensor operated

Vandal-proof

Suitable for very high traffic facilities

10 Year Warranty

It normally goes along with a soap dispenser

Global Value Series Hand Dryer Cut Sheet

CERTIFICATES AND QUALIFICATIONS

UL comply with UL499 norm.

COMPONENTS AND MATERIALS

Cast iron one-piece cover with white porcelain enamelled coating 1/4" (6 mm) thick

Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special saniflow ® key wrench

Base in aluminum, 1/8" (3 mm) thick, with 4 x 5/16" (8 mm) holes for wall mounting

Fire resistant plastic UL 94-VO fan scroll

Motor, universal, 5,500 rpm, B class, included a 4 A fuse with sealed and self-lubricated ball bearings

Aluminum centrifugal turbine with double symmetrical inlet

Waved wire NiCr heating element that incorporates a safety thermostat.

Nozzle in chrome plated zamak, 22 _ thick.

Adjustable (6-10") IR electronic detection sensor

OPERATIONS

UL comply with UL499 norm.

SPECIFICATIONS

Surface mounted vandal resistant hand dryer shall be fabricated with one-piece 1/4" thick cast iron cover, with glazed porcelain coated. The back base shall be aluminum, 1/8" thick and with 4 holes for wall mounting. Cover shall be equipped with a chromed-plated revolving 360° nozzle for hand and face drying.

The dryer shall be activated through an infrared electronic sensor and shall automatically turn off when hands are removed. Motor shall be 1/3 hp, 5,500 r.p.m. , universal type, with a 4A fuse with sealed, self- lubricated ball bearing

The waved wire NiCr heating element should incorporate a thermal limiter which will switch off by a temperature of 176 °F (80°C). The fan should be an aluminum centrifugal turbine with double symmetrical inlet, and the fan scroll shall be made of a fire resistant plastic UL 94-V0. Dryer shall deliver 290 CFM of air at 128 °F (53 °C) and 5,512 LFM velocity during useral controlled drying cycle. The dryer shall have a total power of 1,850 W with a consumption 16A.

Noise level should be 70 dB. Overall dimensions shall be 11-1/8"W x 10"H x 8-1/2"D. Unit shall be UL listed, and /or VDE approved and CE marked.

TECHNICAL SPECIFICS

525

Cast iron one-piece cover with white porcelain enamelled coating 1/4" (6 mm) thick

Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special saniflow ® key wrench

Base in aluminum, 1/8" (3 mm) thick, with 4 x 5/16" (8 mm) holes for wall mounting

Fire resistant plastic UL 94-VO fan scroll

Motor, universal, 5,500 rpm, B class, included a 4 A fuse with sealed and self-lubricated ball bearings

Aluminum centrifugal turbine with double symmetrical inlet

Waved wire NiCr heating element that incorporates a safety thermostat.

Nozzle in chrome plated zamak, 22 _ thick.

Adjustable (6-10") IR electronic detection sensor

Saniflow Heavy Duty Cast Iron Auto Series Hand Dryers

PRODUCT OVERVIEW

CERTIFICATES AND QUALIFICATIONS

COMPONENTS AND MATERIALS

OPERATIONS

SPECIFICATIONS

TECHNICAL SPECIFICS

Related Products

Excel Xlerator Hand Dryer XL-GR Graphite - Electric High Speed - Automatic - Green Spec

Xlerator XL-W Excel Hand Dryer - White

Excel Xlerator Hand Dryer XL-BW White (BMC) Electric High Speed - Automatic Sensor

Excel Xlerator Hand Dryer XL-C Chrome - Electric High Speed - Automatic - Green Spec

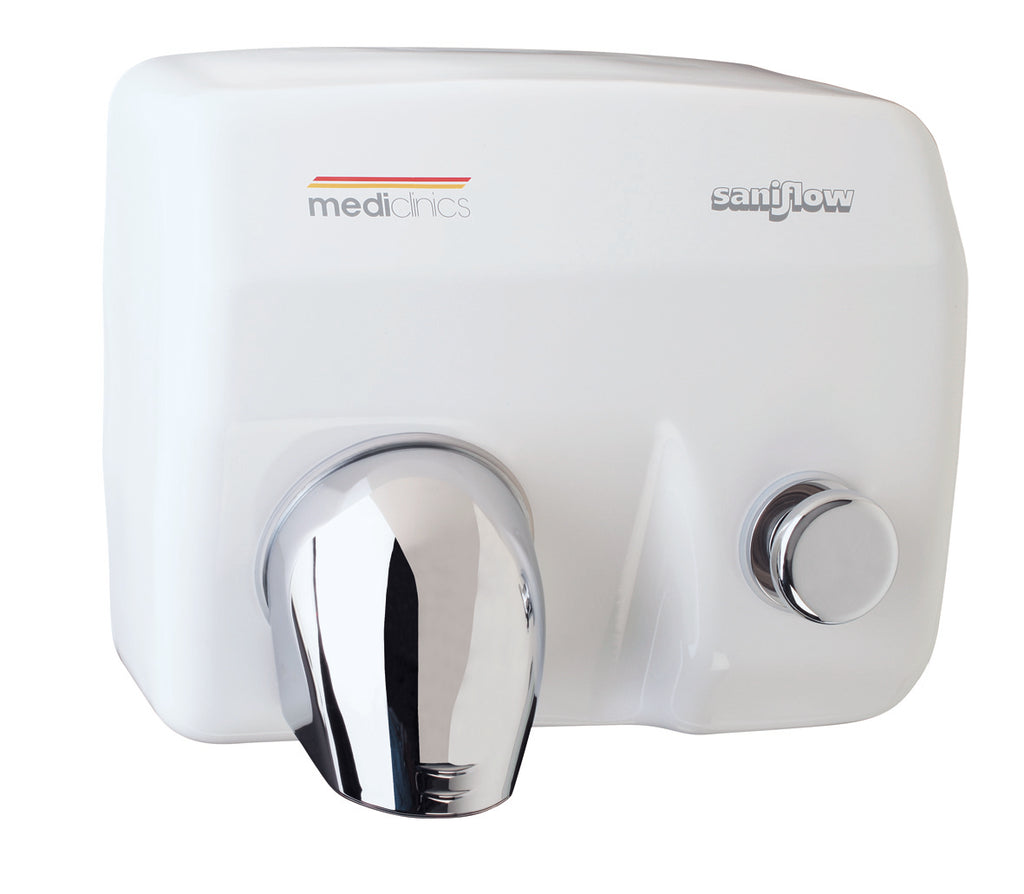

Saniflow Heavy Duty Cast Iron Push Button Hand Dryer
