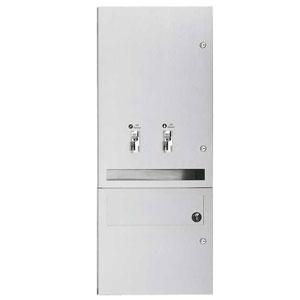

Recessed Sanitary Napkin/Tampon Vendor/ Disposal -0468-25
Product Type : Feminine Hygiene Disposals
Vendor : American Specialties
SKU : HDM-ASI-04684-TM
PRODUCT OVERVIEWIdeal for one toilet washrooms. Has 2 dispensing mechanisms and removable disposal with self-closing door which can be emptied without opening dispenser unit. Dispenses 15 napkins, 23 tampons.
SPECIFICATIONSSanitary Napkin / Tampon Vendor / Disposal shall dispense 15 napkins and 23 tampons of specified sizes and shall have a waste capacity of 1.9 gal (7.2 liters). Unit shall be fabricated of alloy 18-8 stainless steel, type 304, 18 gauge; all exposed surfaces shall have No 4 satin finish and be protected during shipment by PVC film easily removable after installation. Cabinet door shall be attached to frame with a full length 3/16"dia. (5mm) stainless steel multi-staked piano hinge and shall be held closed with three (3) tumbler locks keyed alike to other ASI washroom equipment. Internal coin-box shall be keyed differently than door locks. Waste disposal door shall be attached to cabinet with a stainless steel spring hinge and have the international waste symbol on face. Waste container shall be fabricated of stainless steel same as above, 22 gauge. Dispensing mechanisms shall be fastener mounted internally to provide ability to change mechanisms for coinage denomination. Structural assembly of body and door components shall be of welded construction and have no exposed fasteners or welded seams. Weights for each feed track shall be supplied.
Unit is mounted in wall recess using No 10 self-tapping screws (by others). Note that coin slot is 22-15/16" (583mm) above bottom edge of rough wall opening.
Rough Wall Opening required is...... 16"W x 42"H x 4′′D minimum (406mm x 1067mm x 102mm).
