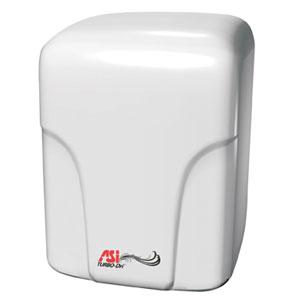

ASI Turbo Dri High 0197 Speed Automatic Surface Mounted Hand Dryer - ADA Compliant

$399.00

Availability : In Stock

Product Type : High Volume Hand Dryers

Vendor : American Specialties

SKU : HDM-ASI-0197

PRODUCT OVERVIEW The High Speed Automatic Turbo-Dri 0197 by American Specialies   Quick drying is less than 12 seconds Operates automatically using infrared sensor Auto-resetting thermostat 60-second automatic shut off Cover fabricated of heavy-duty, one-piece-formed stainless steel ADA Compliant Green Spec listed 5 Year Warranty Hand Dryer Placement Dryers should...


PRODUCT OVERVIEW

The High Speed Automatic Turbo-Dri 0197 by American Specialies



  • Quick drying is less than 12 seconds
  • Operates automatically using infrared sensor
  • Auto-resetting thermostat
  • 60-second automatic shut off
  • Cover fabricated of heavy-duty, one-piece-formed stainless steel
  • ADA Compliant
  • Green Spec listed
  • 5 Year Warranty

  • Hand Dryer Placement
  • Dryers should be placed at least 2 feet apart and at least 12” from washbasin.
  • Do not install dryer over washbasin.
  • Automatic dryers should be at least 18” above any projection which may interfere with the operation of the automatic sensor.
  • Average traffic washroom..............1 dryer per 2 washbasins
  • Heavy traffic washroom..................1 dryer per washbasin
  • 54” wash fountain...........................4 dryers per sink

    Mounting Heights (From floor to bottom of hand dryer):
  • Men 44"
  • Women 42"
  • Children 32-42"
  • Handicapped 36"
    PRODUCT CUT SHEET
    Spec Sheet

    COMPONENTS AND MATERIALS

  • Cover shall be fabricated of heavy-duty, one piece formed stainless steel 1/16" (1.5) thick finished on all exposed surfaces as satin or bright polished (by option specified) or heavy-duty, one piece formed steel 1/16" (1.6) thick finished on all exposed surfaces with white porcelain enamel
  • .

    SPECIFICATIONS

    Surface Mounted High-Speed Hand Dryer shall operate automatically from IR sensor activated by beam reflection from objects placed in sensing zone. Motor and heating element shall have internal resetting automatic thermal protection. Unit shall develop 68 CFM (116 m3/h) of heated air and shall provide drying time of less than 15 seconds. Warm air output temperature and velocity shall be adjustable by owner. Cover shall be fabricated of heavy-duty, one piece formed stainless steel 1/16" (1.5) thick finished on all exposed surfaces as satin or bright polished (by option specified) or heavy-duty, one piece formed steel 1/16" (1.6) thick finished on all exposed surfaces with white porcelain enamel.

    Fixed directional air nozzle shall be heavy-duty, rust proof and highly tamper resistant. Air intake slots shall not allow access to internal parts. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self-calibrate to provide uniform sensitivity over its entire life span.

    Sensitivity shall be adjustable by owner to suit mounting conditions and intended usage population. Entire unit shall be internally electrically grounded. Motor speed shall be adjustable by owner in range between maximum power and maximum efficiency. Dryer unit shall have C-UL-US®, CE, and TÜV approval and be listed under the re-examination services of Underwriters Laboratories, Inc. Unit shall be warranted against defects in materials or workmanship for five (5) years.

    TECHNICAL SPECIFICS

  • Dimensions 11 9/16" H x 8 1/16” W x 7 5/64” D
  • Motor: 3⁄8 HP – 1 HP, 7-18 krpm, adjustable, brush type, dual ball bearings
  • Voltage 120 VAC, 50/60 Hz; 240 VAC, 50/60 Hz. 1.6 kW
  • Air Output 48 CFM - Temp: 140˚ F (60˚ C)
  • Heater 400 - 900 Watts
  • Current 1.6 Amps @ 120 VAC; 1.6 AMPS @ 240 VAC
  • WARRANTY

    5 Year
  • Cover shall be fabricated of heavy-duty, one piece formed stainless steel 1/16" (1.5) thick finished on all exposed surfaces as satin or bright polished (by option specified) or heavy-duty, one piece formed steel 1/16" (1.6) thick finished on all exposed surfaces with white porcelain enamel
  • .
