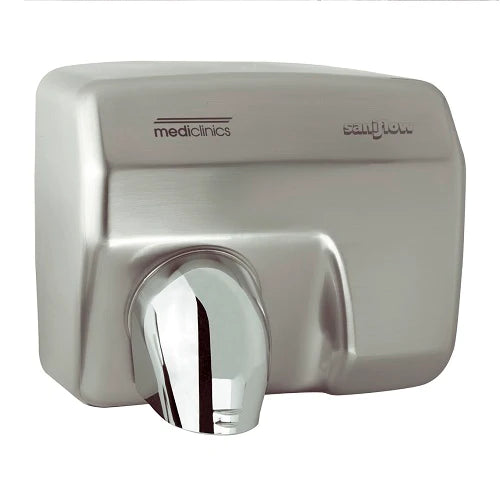

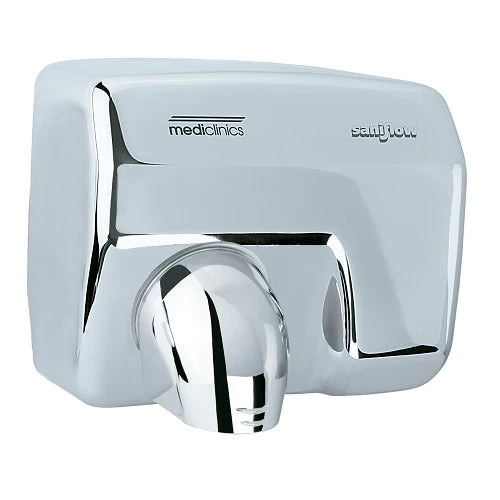

Saniflow Heavy Duty Auto Series Hand Dryers
Availability : In Stock
Product Type : Hand Dryers
Vendor : Hand Dryers
SKU : HDM-SF-E88A
PRODUCT OVERVIEWLong-lasting compact units with anti-vandalism features, minimum consumption and maintenance and free from vibrations and noise. This product is available with automatic infrared activation or manual activation and the casing comes in different materials and finishesWarm air hand dryer.Sensor operatedMaximum robustness and powerVandal-proofSuitable for very high traffic facilities.10 Year...
PRODUCT OVERVIEWLong-lasting compact units with anti-vandalism features, minimum consumption and maintenance and free from vibrations and noise. This product is available with automatic infrared activation or manual activation and the casing comes in different materials and finishes
CERTIFICATES AND QUALIFICATIONSUL comply with UL499 norm.
COMPONENTS AND MATERIALS
OPERATIONSUL comply with UL499 norm.
SPECIFICATIONSSurface mounted vandal resistant hand dryer shall be fabricated with one-piece 5/64" thick metal sheet cover,
with glazed porcelain coated. The back base shall be aluminum, 1/8" thick and with 4 holes for wall mounting.
Cover shall be equipped with a chrome-plated 360° revolving nozzle for hand and face drying. The dryer shall
be activated through an infrared electronic sensor and shall automatically turn off when hands are removed.
Motor shall be 1/3 hp, 5,500 r.p.m. , universal type, with a 4A fuse with sealed, self- lubricated ball bearing; The
waved wire NiCr heating element should incorporate a thermal limiter which will switch off by a temperature of
176 °F (80°C). The fan should be an aluminum centrifugal turbine with double symmetrical inlet, and the fan
scroll shall be made of a fire resistant plastic UL 94-V0. Dryer shall deliver 290 CFM of air at 128 °F (53 °C) and
5,512 LFM velocity during user controlled drying cycle. The dryer shall have a total power of 1,850 W with a
consumption 16A. Noise level should be 70 dB. Overall dimensions shall be 11"W x 9-3/4"H x 8-1/4"D. Unit
shall be UL listed, and /or VDE approved and CE marked.
