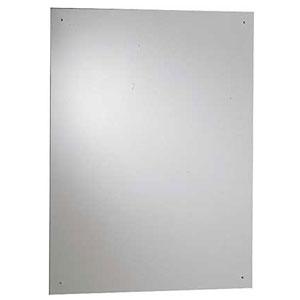

Commercial Restroom Mirror, Frameless Stainless Steel Mirror with Masonite Backing

$116.05

Product Type : Washroom Accessories

Vendor : Washroom Accessories

SKU : HDM-ASI-M8026

All Mirrors are subject to additional shipping charges. This is a quote by quote basis. PRODUCT OVERVIEW FRAMELESS STAINLESS STEEL MIRROR Fabricated of 20 gauge type 304 stainless steel polished to a #8 mirror finish with a 1/4" (6 mm) return. Provided with 1/4" (6 mm) thick concealed tempered masonite backing...


All Mirrors are subject to additional shipping charges. This is a quote by quote basis.

PRODUCT OVERVIEW

FRAMELESS STAINLESS STEEL MIRROR Fabricated of 20 gauge type 304 stainless steel polished to a #8 mirror finish with a 1/4" (6 mm) return. Provided with 1/4" (6 mm) thick concealed tempered masonite backing and 4 mounting holes. Installer shall provide mounting screws to suit individual field conditions.>br>
All Mirrors are subject to additional shipping charges. This is a quote by quote basis.

COMPONENTS AND MATERIALS

b>Installation
Surface mount unit to wall using hardware supplied by installer through four mounting holes provided. For compliance with ADA Accessibility Guidelines install unit with bottom edge of reflecting surface no higher than 40" (1016mm) maximum above finished floor.
  • The reflective quality of a stainless steel mirror is not as true as plate glass. It is not recommended that a mirror of this type be made larger than 48"W x 24"H (1219mm x 610mm) because image quality (distortion) degrades with increased surface size.

    SPECIFICATIONS

    Frameless Stainless Steel Mirror with Masonite Back shall be fabricated of 18-8 stainless steel, type 304, No 20 gauge with No8 mirror finish. Backing shall be 1/4" (6mm) thick tempered water resistant masonite. Unit shall have 5/16" (8mm) returns to wall all around. Unit shall be provided with four (4) 7/32" (5.5mm) dia. mounting holes.
