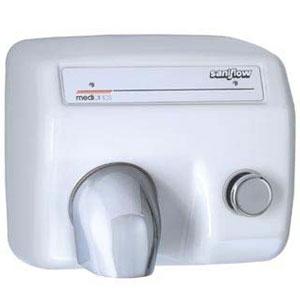

Saniflow Heavy Duty Metal Push Button Hand Dryer

$260.00

Availability : In Stock

Product Type : Hand Dryers

Vendor : Hand Dryers

SKU : HDM-E88

PRODUCT OVERVIEWLong-lasting compact units with anti-vandalism features, minimum consumption and maintenance and free from vibrations and noise. This product is available with automatic infrared activation or manual activation and the casing comes in different materials and finishesWarm air hand dryer.Push-button operatedMaximum robustness and powerVandal-proofSuitable for very high traffic facilities.10 Year...


PRODUCT OVERVIEW

Long-lasting compact units with anti-vandalism features, minimum consumption and maintenance and free from vibrations and noise. This product is available with automatic infrared activation or manual activation and the casing comes in different materials and finishes

  • Warm air hand dryer.
  • Push-button operated
  • Maximum robustness and power
  • Vandal-proof
  • Suitable for very high traffic facilities.
  • 10 Year Warranty
  • It normally goes along with a soap dispenser.

  • Global Value Series Hand Dryer Cut Sheet

    CERTIFICATES AND QUALIFICATIONS

    UL comply with UL499 norm.

    COMPONENTS AND MATERIALS

  • Steel one-piece cover with white porcelain enamelled coating 5/64"(1,9 mm) thick
  • Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special saniflow ® key wrench.
  • Base in aluminum, 1/8" (3 mm) thick, with 4 x 5/16" (8 mm) holes for wall mounting
  • Fire resistant plastic UL 94-VO fan scroll
  • Motor, universal, 5,500 rpm, B class, included a 4 A fuse with sealed and self-lubricated ball bearings
  • Aluminum centrifugal turbine with double symmetrical inlet
  • Waved wire NiCr heating element that incorporates a safety thermostat
  • Nozzle in chrome plated zamak, 22 _ thick.
  • Push -button in chrome plated zamak, 22 _ thick
  • OPERATIONS

    UL comply with UL499 norm.

    SPECIFICATIONS

    Surface mounted vandal resistant hand dryer shall be fabricated with one-piece 5/64" thick metal sheet cover, with glazed porcelain coated. The back base shall be aluminum, 1/8" thick and with 4 holes for wall mounting. Cover shall be equipped with a chromed-plated Fixed nozzle for hand drying.

    The dryer shall be activated using the chrome-plated zamak 22 _ thick Push-button Or Sensor Option that activates an electromechanical timer with a 34 second cycle before switching dryer off automatically. Motor shall be 1/3 hp, 5,500 r.p.m. , universal type, with a 4A fuse with sealed, self- lubricated ball bearing;

    The waved wire NiCr heating element should incorporate a thermal limiter which will switch off by a temperature of 176 °F (80°C). The fan should be an aluminum centrifugal turbine with double symmetrical inlet, and the fan scroll shall be made of a fire resistant plastic UL 94-V0. Dryer shall deliver 290 CFM of air at 128 °F (53 °C) and 5,512 LFM velocity during user controlled drying cycle.

    The dryer shall have a total power of 1,850 W with a consumption 16A. Noise level should be 70 dB. Overall dimensions shall be 11"W x 9-3/4"H x 8-1/4"D. Unit shall be UL listed, and /or VDE approved and CE marked.

    TECHNICAL SPECIFICS

    450
  • Steel one-piece cover with white porcelain enamelled coating 5/64"(1,9 mm) thick
  • Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special saniflow ® key wrench.
  • Base in aluminum, 1/8" (3 mm) thick, with 4 x 5/16" (8 mm) holes for wall mounting
  • Fire resistant plastic UL 94-VO fan scroll
  • Motor, universal, 5,500 rpm, B class, included a 4 A fuse with sealed and self-lubricated ball bearings
  • Aluminum centrifugal turbine with double symmetrical inlet
  • Waved wire NiCr heating element that incorporates a safety thermostat
  • Nozzle in chrome plated zamak, 22 _ thick.
  • Push -button in chrome plated zamak, 22 _ thick
