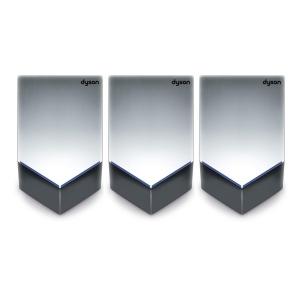

Dyson Airblade V AB12 Sprayed Nickel Hand Dryers - 3 Dryers

$2,820.00

Product Type : Dyson Airblade Hand Dryers

Vendor : Dyson Airblade Hand Dryers

SKU : AB12-3

PRODUCT OVERVIEW Dyson Airblade V AB12 Sprayed Nickel Hand Dryers - 3 Pieces Product rangeAB12 Sprayed NickelPart number/SKULow Voltage: 301829-01TECHNICAL SPECIFICATIONElectricalInput voltage: Low Voltage = 110-127 V,Frequency: Low Voltage = 50 or 60 Hz, subject to voltage(85-115 V at 50 Hz; 85-130 V at 60 Hz);Rated power: 1400 WMotor type:...


PRODUCT OVERVIEW

Dyson Airblade V AB12 Sprayed Nickel Hand Dryers - 3 Pieces


Product range
AB12 Sprayed Nickel
Part number/SKU
Low Voltage: 301829-01

TECHNICAL SPECIFICATION

Electrical
Input voltage: Low Voltage = 110-127 V,
Frequency: Low Voltage = 50 or 60 Hz, subject to voltage
(85-115 V at 50 Hz; 85-130 V at 60 Hz);
Rated power: 1400 W
Motor type: Dyson digital motor – V4 brushless DC Motor
Motor switching rate: 6,100 per second
Motor speed: 92,000 rpm
Amp: Recommended dedicated 15 amp circuit,
Low voltage = 11.7 amps at 120V,
Operating temperature range: 32°– 104°F
Heater type: None
Standby power consumption: Less than 0.5 W
Construction
Casing construction: Polycarbonate ABS casing
Antimicrobial coating type: AB12 (Sprayed Nickel) Antimicrobial additive
in paint.
Color finish: AB12 Sprayed Nickel molded plastic
Back plate/mounting bracket construction: ABS/PBT Plastic
Exterior screw type: Anti-tamper M4 Pin-Hex
Water ingress protection to IP24

Filter
Double-life HEPA filter (glass fiber and fleece prelayer)
Bacteria removal 99.97% at 0.3 microns

Operation
Touch-free proximity capacitive sensor.
Hand dry time measurement: 12 seconds*
Operation lock-out period: 30 seconds
Airspeed at apertures: 420 mph
Maximum Altitude: 2,000m/6,561 ft.
Operating airflow: Up to 7.39 gal/sec and up to 59.3 CFM
Rated operating noise power: 85 db(A)

Logistics
Net weight: 6.17 lbs.
Packaged weight: 8.81 lbs.
Packaged dimensions: (H) 53 /4" × (W) 177/8" × (D) 103 /4"
Unit barcodes:
Sprayed Nickel – Low Voltage: 885609001463


Standard warranty
5 year parts and 5 year limited labor warranty

Accreditations
Carbon Trust
NSF International
ADA compliant
Contributes to LEED certification

*Dry time measured using Dyson test method 769 based on
NSF P335 using a measurement of 0.1g residual moisture.


FLOOR
Recommended installation heights from floor
Male X 521/8" Y 513/16" Z 365/8"
Female X 503/4" Y 4913/16" Z 351/4"
Child or disabled X 425/16" Y 413/8" Z 2613/16"
Child 5-8 X 371/2" Y 367/16" Z 22"
Child 8-11 X 417/16" Y 401/2" Z 2515/16"

Machine dimensions
Height 151/2" Width 9 7/32" Depth 4"

Minimum clearance
811/16" in clearance either side and 13/16" in above machine.
Cable entry point from floor
Male 427/8"
Female 411/2"
Child or disabled 332/16"
Child 5-8 281/4"
Child 8-11 323/16"
